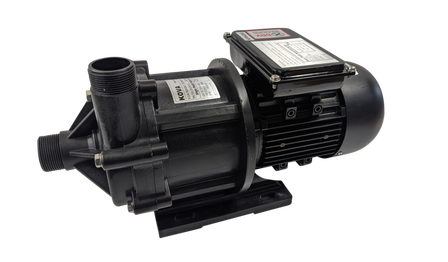

KOVA-TMDH-5040-5 (KOVA6000) 5HP Single Phase induction motor centrifugal fan cooled magnetic drive pump.

Available in 380/440-3Ph, 220/240-50/60Hz and 110/60Hz. Max flow rate 600-lpm at 0.5mtr-head - Min flow rate at 50.1-lpm at 30.5mtr head. Output 3.75KW / 5.0HP Standard working point flow rate 6339GPH/400LPM BSP Fittings: 50mm (2.0") Inlet / 40mm (1.5") Outlet. 280mm wide 615mm long 275mm high (without fittings)

Capacitors for 220/240V 50/60Hz: (Start) TBA - (Running) TBA

Capacitors for 110V 60Hz: (Start) TBA - (Running) TBA

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from "Alumina Ceramic" as well as the shaft seat. Built for longevity and reliability.
